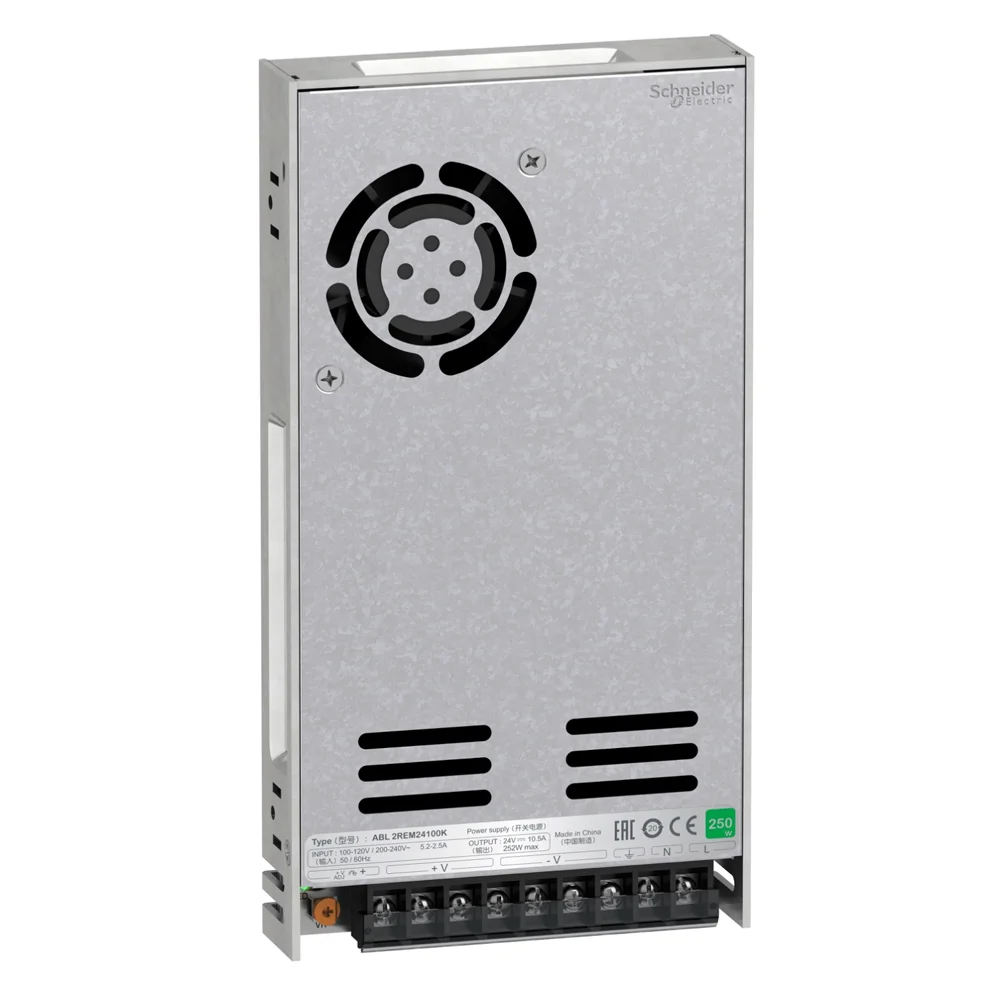

Schneider Single Phase Power Supply 10A 250W 24V DC ABL2REM24100K

The Schneider Electric ABL2REM24100K is a single-phase power supply unit (PSU) designed to efficiently convert standard AC line voltage into a dependable DC output. This particular model caters to applications requiring a stable 24V DC power source, offering a robust and versatile solution for powering various low voltage devices.

Key Features and Specifications:

• Input:
  • AC voltage range: 100-240V AC
  • Single-phase operation
• Output:
  • Rated voltage: 24V DC
  • Maximum current: 10A
  • Power output: 250W
• General Specifications:
  • Compact and lightweight design
  • Wall mountable
  • LED status indicator with overload and overtemperature warnings
  • Forced air cooling with integrated fan
  • Manual voltage selection switch (depending on region)
  • Schneider Electric’s Phaseo series
  • Model number: ABL2REM24100K

Applications:

The ABL2REM24100K finds application in a diverse range of low voltage systems across various industries. Here are some common use cases:

• Industrial Automation: Powering control systems, sensors, actuators, and other low voltage devices in factories and production lines.
• Building Automation: Supplying reliable DC power for security systems, access control, CCTV cameras, LED lighting systems, and building management systems.
• Machine Control: Providing a stable DC source for powering control panels and electronic components within various machines.
• Communication Systems: Supplying power for network routers, switches, and other communication equipment in data centers and network cabinets.
• Test and Measurement Equipment: Powering various low voltage test instruments and equipment used in research, development, and quality control applications.

Benefits of the ABL2REM24100K:

• Reliable Power Conversion: As a product from Schneider Electric, a trusted name in electrical equipment, the ABL2REM24100K ensures consistent and reliable DC power output, keeping your equipment functioning smoothly.
• Increased Power Capacity: Compared to the ABL2REM24085K model, this unit offers a higher output current (10A) and power rating (250W), making it suitable for powering devices with slightly higher current demands.
• Efficiency and Thermal Management: The power supply boasts high efficiency, minimizing energy waste and heat generation. Additionally, the integrated fan with forced air cooling ensures optimal thermal performance, extending the unit’s lifespan.
• User-Friendly Features: The LED status indicator provides real-time information on the power supply’s operational state, including overload and overtemperature warnings. The manual voltage selection switch (on some models) allows for easy adaptation to different power grids.
• Compact Design and Easy Installation: The unit’s compact size makes it ideal for space-constrained environments. Its lightweight design and wall mountability further facilitate installation within cabinets, control panels, or other mounting locations.

Selection Considerations:

While the ABL2REM24100K offers a powerful solution for various applications, it’s crucial to consider your specific requirements before selecting a power supply. Here are some key factors to keep in mind:

• Required Output Current: Ensure the power supply’s maximum current rating (10A in this case) is sufficient to handle the total current draw of your connected devices.
• Power Consumption of Devices: The 250W power rating specifies the maximum power the unit can deliver. Verify that this capacity meets the combined power needs of your equipment.
• Input Voltage Compatibility: Confirm that the AC input voltage range (100-240V AC) aligns with your local power grid.
• Environmental Conditions: Consider the ambient operating temperature range for the power supply unit. The ABL2REM24100K typically operates efficiently between -10°C to +50°C.
• Need for Additional Features: Depending on your specific needs, explore other models within the Schneider Electric Phaseo series that might offer features like remote monitoring capabilities or alarm outputs.

Conclusion:

The Schneider Electric ABL2REM24100K is a versatile and reliable single-phase power supply solution for powering a wide range of 24V DC devices. Its increased power capacity compared to similar models makes it suitable for applications with slightly higher current requirements. The compact design, user-friendly features, and efficient operation make this power supply a valuable asset for industrial automation, building automation, and various other low voltage applications. By carefully considering your specific needs
