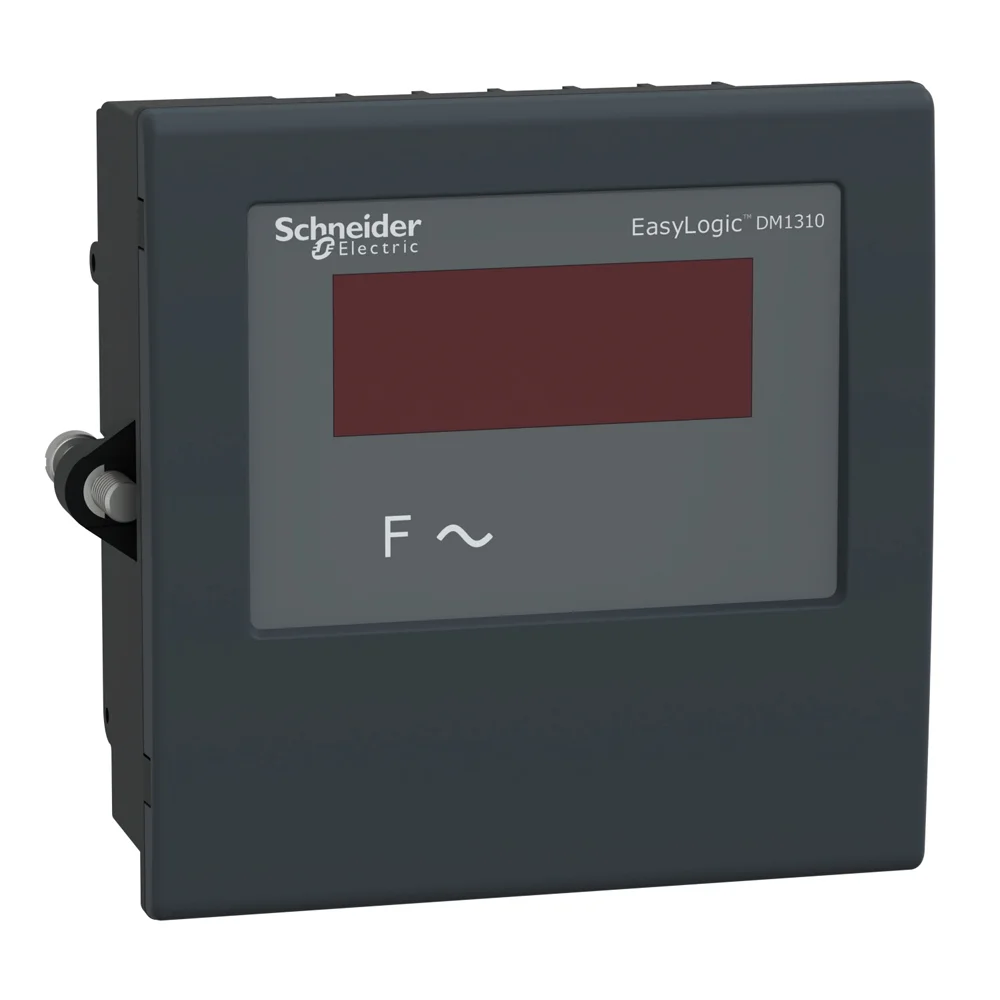

Schneider EasyLogic DM1310 Single Phase Frequency Meter – 30002367
The Schneider Electric EasyLogic DM1310 (30002367) is a single-phase digital frequency meter designed for accurate monitoring of electrical frequency in industrial and commercial power systems. It is part of the EasyLogic DM1000 series, known for compact design, high accuracy, and reliability.
⚙️ Product Overview
- Model: DM1310
- Part Number: 30002367
- Type: Digital Panel Frequency Meter
- Phase: Single Phase (1P + N)
- Measurement: Frequency (Hz)
- Display: 4-digit LED display
- Mounting: Panel mount (96 × 96 mm)
- Accuracy: Class 0.2 (high precision)
This meter is designed for real-time frequency monitoring, helping maintain system stability and detect fluctuations.
📊 Key Technical Specifications
- Frequency Range: 20 – 100 Hz
- Supply Voltage: 100–230V AC/DC ±20%
- Display Type: LED, 4-digit
- Accuracy: ±0.2% of full scale
- Power Consumption: ~3 VA @ 230V
- Panel Cut-out: 92 × 92 mm
✨ Key Features & Benefits
- ⚡ High Accuracy (Class 0.2)
Ensures precise frequency measurement for critical systems - 📟 Bright LED Display
Clear visibility even in low-light panel environments - 🧩 Compact 96×96 mm Design
Standard size for easy panel integration - 🔄 Real-Time Monitoring
Detects frequency fluctuations instantly - 🛠️ Easy Installation
Panel-mounted with simple wiring and setup - 🛡️ Industrial Reliability
Designed for harsh environments and continuous operation
🏭 Applications
- Electrical control panels
- Generator (DG set) frequency monitoring
- Industrial power distribution systems
- OEM panels & automation systems
- Test labs and load control setups
⚡ Typical Usage
- Monitoring mains or generator frequency
- Detecting abnormal frequency variations
- Ensuring stable power supply in critical systems
🏆 Why Choose Schneider DM1310 (30002367)?
The DM1310 frequency meter is a cost-effective and highly reliable solution for frequency monitoring. It offers:
- ✔️ High precision (Class 0.2)
- ✔️ Compact and panel-friendly design
- ✔️ Long-term stability and durability
It is an ideal choice for panel builders and industrial users who need accurate and dependable frequency measurement.
