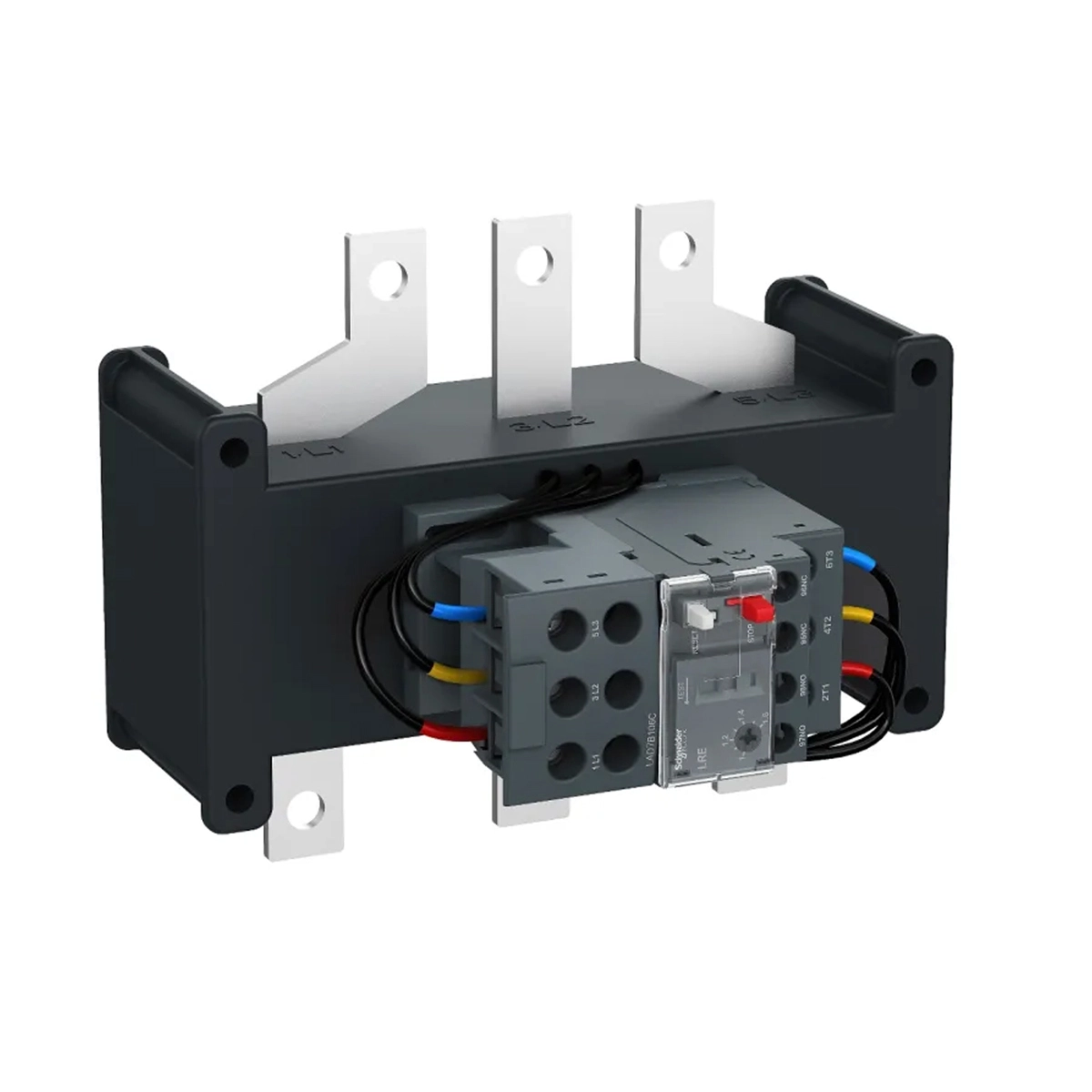

Schneider EasyPact TVS Thermal Overload Relay LRE482

Schneider EasyPact TVS Thermal Overload Relay LRE482 — Heavy-Duty 84–135 A Motor Protection

The Schneider EasyPact TVS Thermal Overload Relay LRE482 is a premium industrial motor protection device from Schneider Electric’s EasyPact TVS series, engineered for robust and dependable protection of medium to high-capacity three-phase motors. Designed to handle demanding industrial conditions, this relay safeguards motors and electrical systems from prolonged overload, phase loss, and unbalanced current conditions — making it ideal for control panels, starter assemblies, and manufacturing installations across India.

🔌 What Is the LRE482 Thermal Overload Relay?

The LRE482 is a three-pole differential thermal overload relay with an adjustable current protection range of approximately 84 – 135 A, designed for larger three-phase motor circuits and heavy machinery. It continuously monitors current in all three phases and disconnects the circuit when sustained overloads or abnormal phase conditions occur, helping prevent motor overheating, insulation damage, and costly downtime. This relay conforms to IEC 60947-4-1 Class 10A tripping standards — balancing tolerance for normal motor start-up surge currents with reliable overload protection.

🛠️ Key Features & Benefits

• Wide Adjustable Current Range (≈ 84–135 A): Fine-tune overload protection to suit medium- and high-capacity motors.

• Three-Pole Differential Protection: Continuously monitors all three phases to detect overload, unbalance, and phase-loss conditions for comprehensive safeguarding.

• IEC 60947-4-1 Class 10A Trip Curve: Standard-compliant thermal response tolerates normal start-up while protecting against sustained overloads.

• Auxiliary Contacts (1 NO + 1 NC): Enables signalling to control panels, PLCs, alarms, or automation systems for fault feedback.

• Manual & Automatic Reset Options: Offers flexibility in resetting after a trip event based on installation needs.

• Trip Indicator Flag: Provides clear visual indication when the relay trips, speeding up fault diagnosis and maintenance.

• Secure Screw-Clamp Terminals: Ensures reliable, vibration-resistant wiring for both power and control circuits.

• Robust Industrial-Grade Build: Designed to withstand tough environments and provide long service life in heavy-use installations.

⚙️ Why Choose the LRE482 Overload Relay?

Thermal overload relays like the Schneider EasyPact TVS LRE482 are essential safety components in motor control systems. They help you:

• Prevent motor damage caused by prolonged overcurrent or overheating

• Enhance electrical safety with overload, imbalance, and phase-loss detection

• Reduce unplanned downtime with early fault trip response

• Extend motor and equipment life through reliable thermal safeguarding

• Support larger and heavier loads with a broad adjustable current range

• Integrate easily in contactor-based motor starter panels

This makes the LRE482 a solid choice for electrical engineers, panel builders, and maintenance professionals handling medium- and high-power motor applications.

📌 Typical Applications

The Schneider EasyPact TVS Thermal Overload Relay LRE482 is ideal for:

• Motor starter panels for medium- to high-capacity motors

• Industrial pumps, compressors, and blowers

• Conveyor and material handling systems

• HVAC systems with larger motors

• Machine tools and production equipment

• Process control and manufacturing automation installations
