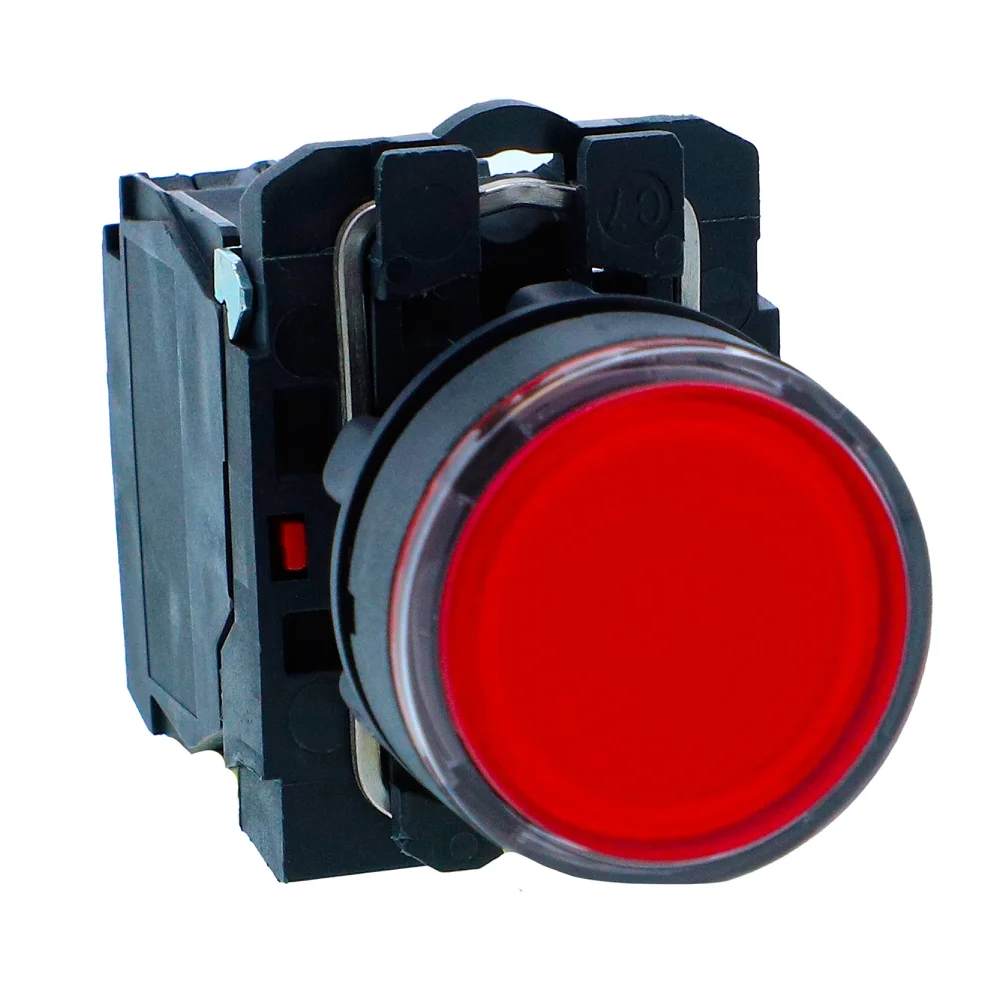

Schneider Illuminated Push Button Plastic Flush Red 1NC XB5AW34M2N

Schneider Illuminated Push Button Plastic Flush Red 1NC – XB5AW34M2N

The Schneider Electric XB5AW34M2N from the Harmony XB5 series is a flush-type red illuminated push button designed for industrial control panels and automation systems. It features a spring return (momentary) mechanism with 1 Normally Closed (1NC) contact and built-in LED illumination, making it ideal for stop, emergency, or safety-related control circuits.

⚙️ Product Overview

• Model: XB5AW34M2N
• Series: Harmony XB5
• Type: Illuminated Flush Push Button
• Color: Red (LED illuminated)
• Operation: Spring Return (Momentary)
• Contact Configuration: 1 NC (Normally Closed)
• Mounting Size: 22mm standard panel cut-out
• Rated Voltage (LED): 220–240V AC
• Light Source: Integral LED
• Connection: Screw clamp terminals

This push button provides both control + visual indication, improving safety and operator awareness in industrial environments.

✨ Key Features & Benefits

• 🔴 Illuminated Red Lens
  High visibility for STOP / OFF / fault indication, even from a distance
• 🔄 Spring Return (Momentary)
  Returns automatically after actuation
• 🔌 1 NC Contact
  Ideal for stop circuits and safety interlocks (circuit opens when pressed)
• 💡 Built-in LED (230V AC)
  Eliminates need for external pilot light
• 🛠️ 22mm Standard Mounting
  Fits all standard control panels
• 🛡️ Industrial Protection (IP65/66)
  Resistant to dust, oil, and water
• 🔧 High Mechanical Life
  Up to 1–5 million operations

🏭 Applications

• Industrial control panels
• PLC & automation systems
• Motor starter panels
• Machine STOP / OFF circuits
• Emergency and safety signaling systems

⚡ Typical Usage

• STOP Push Button (Red + NC)
• Fault / alarm acknowledgment
• Safety interlock circuits
• Emergency control (non-mushroom type)

🏆 Why Choose Schneider XB5AW34M2N?

The XB5AW34M2N is designed for safety-critical applications, combining clear red illumination with NC contact logic. It offers:

• ✔️ Improved operator visibility
• ✔️ Reliable switching for safety circuits
• ✔️ Long-lasting industrial performance

This makes it a standard choice for STOP and safety functions in modern control panels.
